🌈 Ultra-Narrow WS2812B LED Strip – 2.7mm, 160 LEDs/M, Individually Addressable RGBIC Lights

🌈 Ultra-Narrow WS2812B LED Strip – 2.7mm, 160 LEDs/M, Individually Addressable RGBIC Lights

Regular price $23.95 USD
Regular price $34.95 USD Sale price $23.95 USD
Sale Sold out
Emitting Color
Length

🌈 Ultra-Narrow WS2812B LED Strip – High-Density Individually Addressable RGBIC Light

Upgrade your lighting experience with the Ultra-Narrow WS2812B LED Strip, featuring 160 LEDs per meter for stunning, vibrant color effects. With its 2.7mm ultra-slim design, this strip is perfect for intricate lighting projects, including DIY PC builds, model lighting, signage, and custom décor.

🔥 Key Features:

✔ Individually Addressable RGBIC – Each LED is programmable for unique color effects.
✔ High-Density 160 LEDs/M – Achieve smoother, more dynamic lighting transitions.

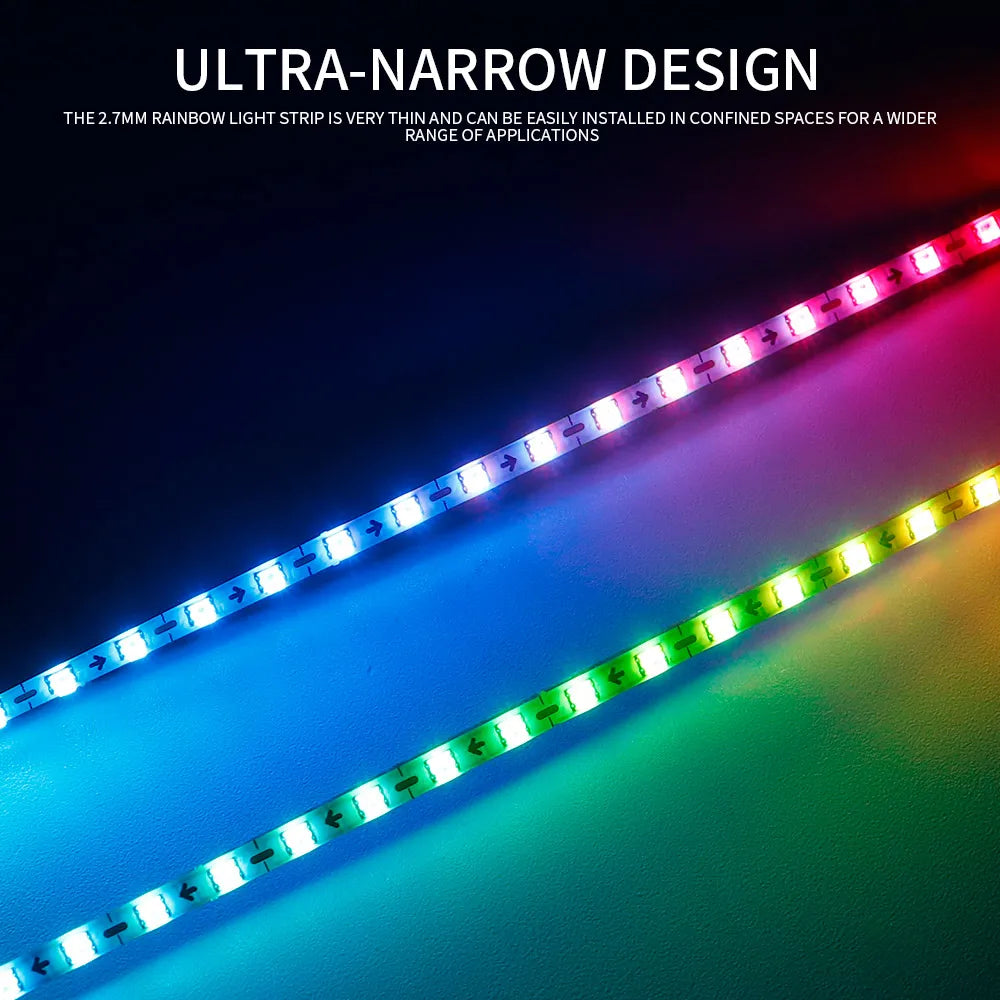

✔ Ultra-Narrow 2.7mm PCB – Ideal for compact spaces and precision lighting.
✔ Dreamcolor Effects – Compatible with WS2812B controllers (not included).
✔ Multiple Length Options – Available in 1m, 2m, 3m, 4m, and 5m.
✔ 180° Wide Viewing Angle – Ensures bright and uniform light distribution.
✔ Durable & Long-Lasting – Rated for 50,000+ hours of operation.

âš¡ Specifications:

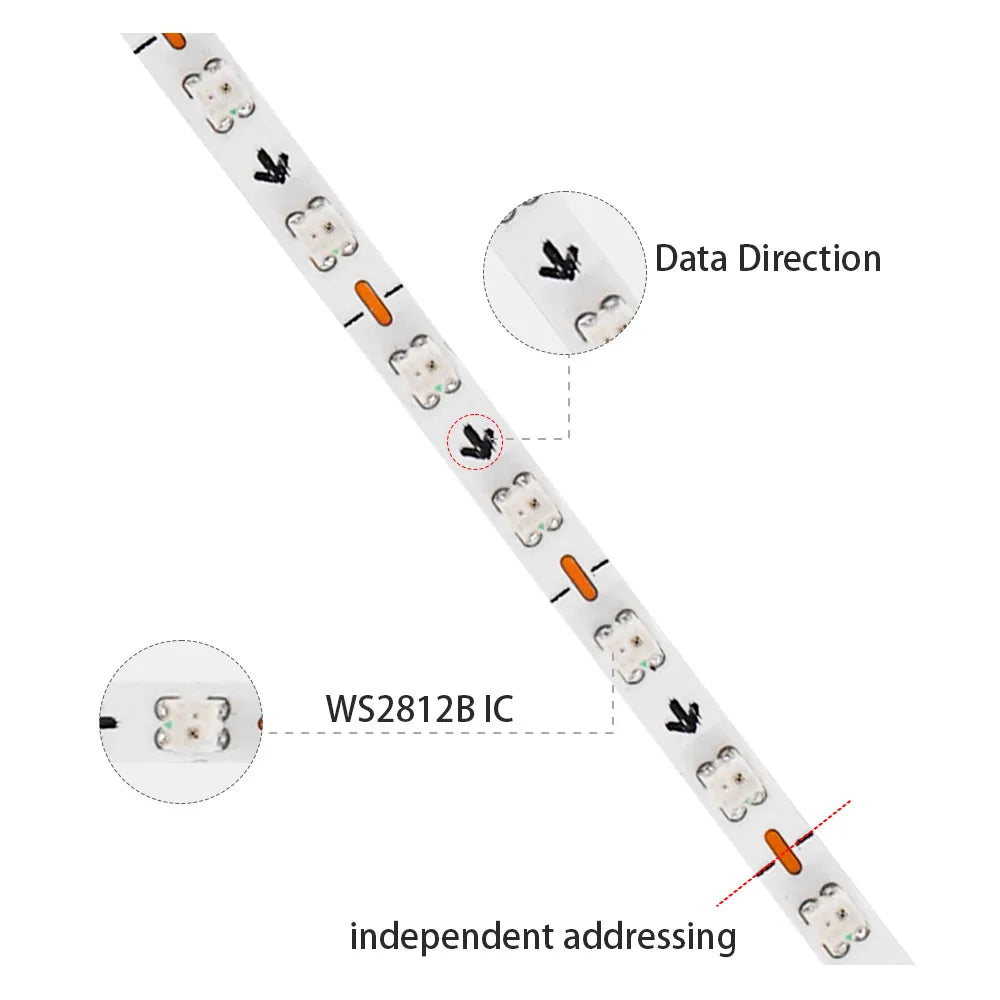

🔹 IC Chip: WS2812B
🔹 Voltage: DC5V/DC12V (Use the correct power supply to avoid damage)
🔹 LED Type: SMD2020

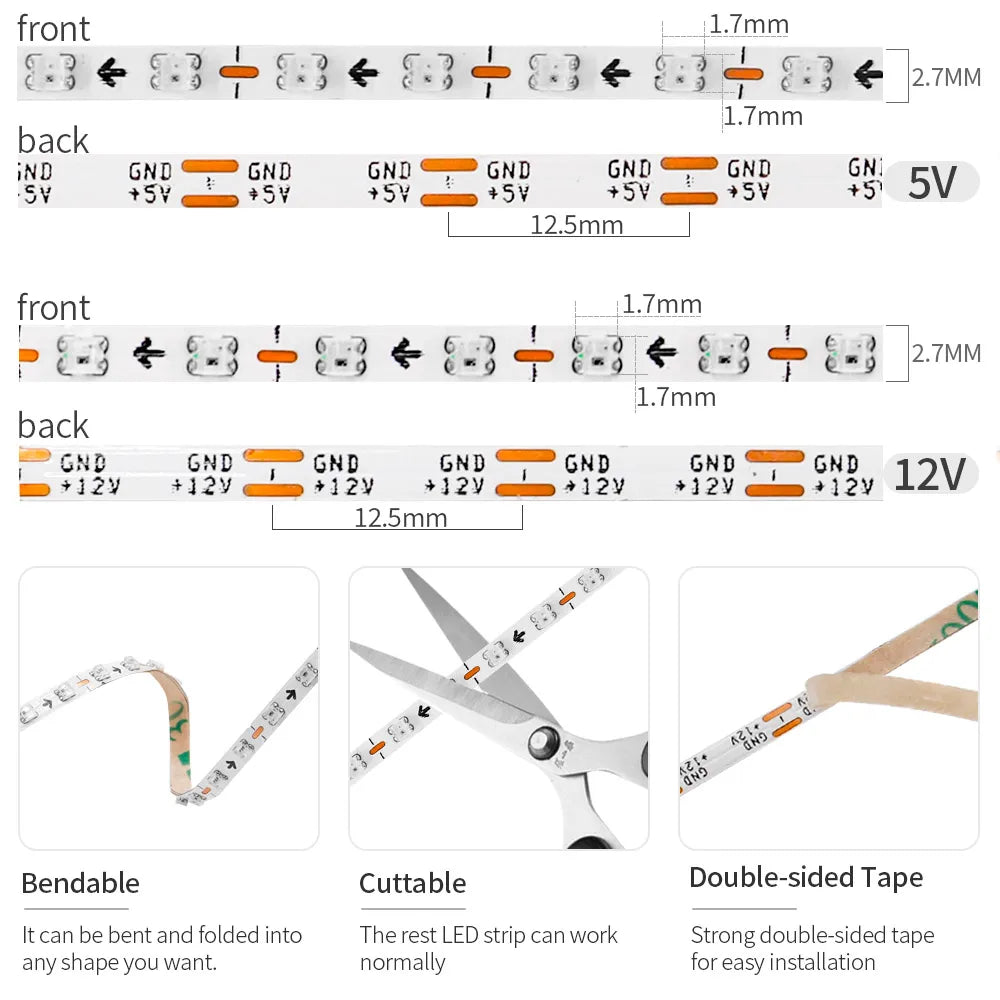

🔹 Cuttable: Every 2 LEDs
🔹 Power Consumption: 5.76W/m
🔹 IP Rating: IP20 (Non-Waterproof)

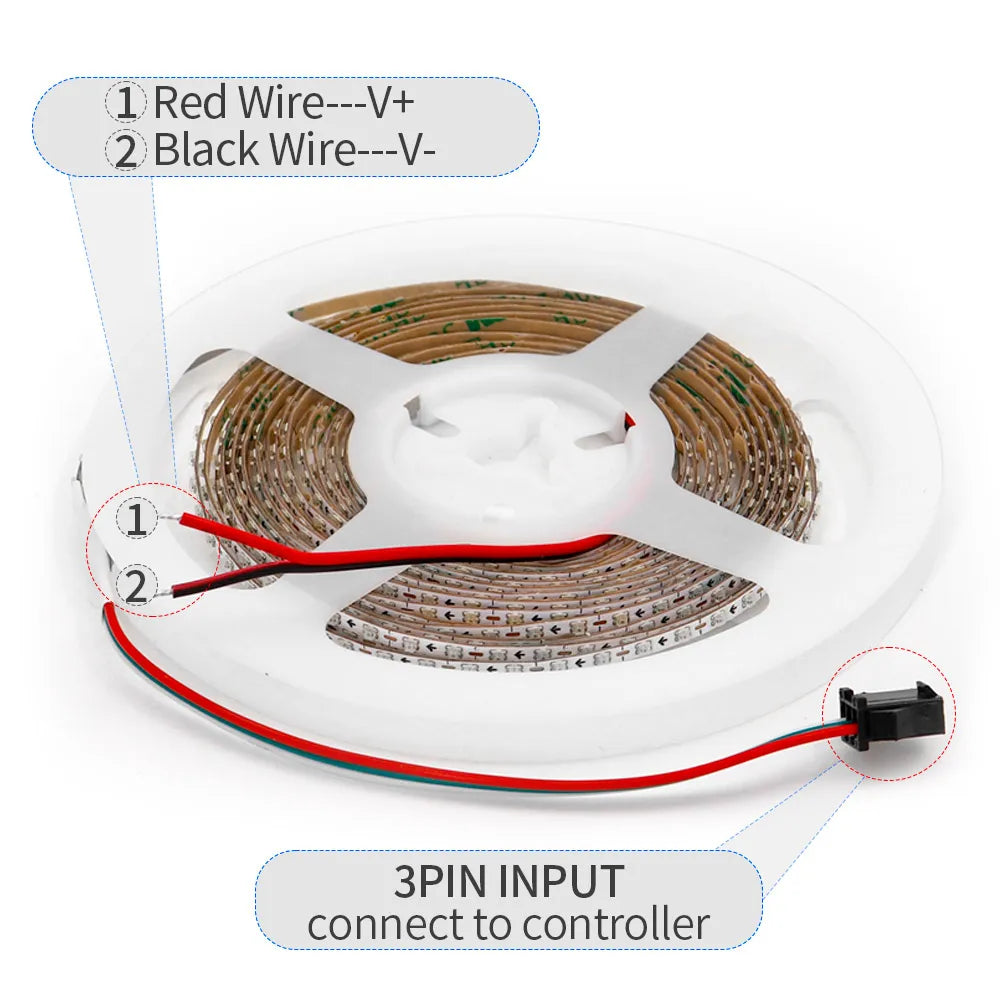

🔹 Wire Configuration: 3 Wires – 5V+ (Red), DATA (Green), GND (White)
🔹 Certifications: CCC, CE, FCC, ROHS

âš  Important Notes:

  • Requires a WS2812B-compatible controller (not included).
  • Needs a 5V or 12V DC power supply (not included).
  • Do not bend the strip sharply to prevent damage.
  • If the strip turns orange in white mode, increase voltage for optimal brightness.

✨ Perfect for: PC case mods, gaming setups, TV backlighting, holiday décor, signage, and more! 🚀

Pay Attention:

1. Led strip welded by 0.5m is very normal in an electronic product,not a quality problem.

2.Since the light strip is super narrow, don't bend it sharply to avoid breaking

3.The DC5V light strip needs a DC5V power supply, if it is greater than DC5.5V, the light strip will be damaged!

The DC12V light strip needs a DC12V power supply, if it is greater than DC12.5V, the light strip will be damaged!

4.When the light strip is in white light, it will gradually change from white light to orange light. This is caused by insufficient voltage. You only need to increase the voltage to solve it.

5.The led strip need a WS2812B data Controller(not include) and led power supply(not include) to light up!



Products Description:

Product Name:Ultra Narrow WS2812 Smart Digital LED Strip

IC Chip:WS2812B

SMD Size: 2020SMD

Voltage :DC5V/DC12V

Color:Addressable RGB full color

LED Qty:160 LEDs/m

PCB width:2.7mm

Watts:6w/m

Cutted:Per 2 led

PCB color:White

IP rated:IP20;non-waterproof

Pins:3 Wires = 5V+(Red wire), DATA(Green wire), GND(White wire)

Length:1m/2m/3m/4m/5m(According to your choice)

Operation temperature: -20℃-+45℃

Storage temperature: -20℃-+60℃

View angle: 180°
